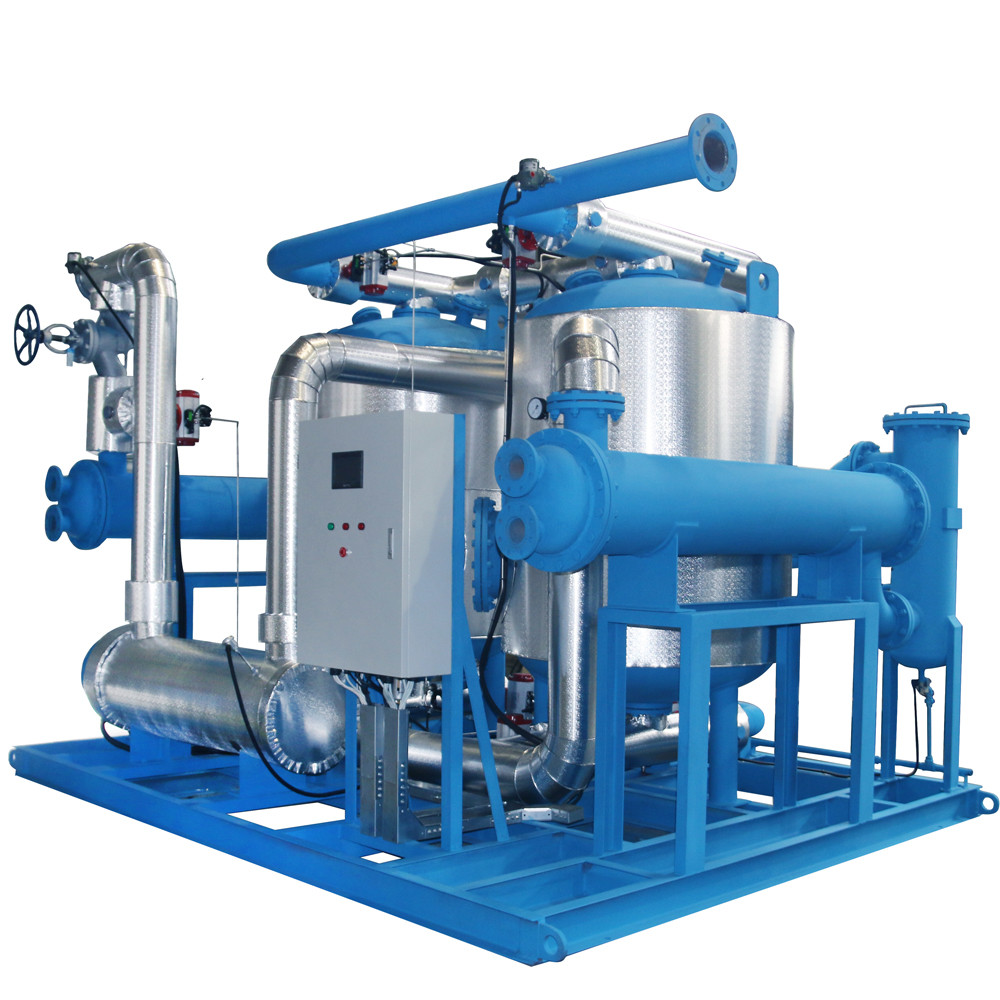

Heat of Compression Zero Purge Air Dryer
Heat of Compression Zero Purge Air Dryer
Categories | KXC Heat of compression air dryer |
---|---|
Brand | KL |
Model | KPB-1200 |
Flow capacity | 130m3/min |
Nomal Inlet pressure | 7bar |
Max. inlet pressure | 10bar |
Pressure dew point | -40°C |
Purge loss | 0% |
Vessel Standard | China GB, CE PED, ASME |
Switch time | 4 hours(adjustable) |
Controller | PLC |
Power supply | 380V-3phase-50hz |
FOB port | Shanghai 、Ningbo |
Terms of Payment | L/C, T/T |
Update Time | Oct 12,2024 |

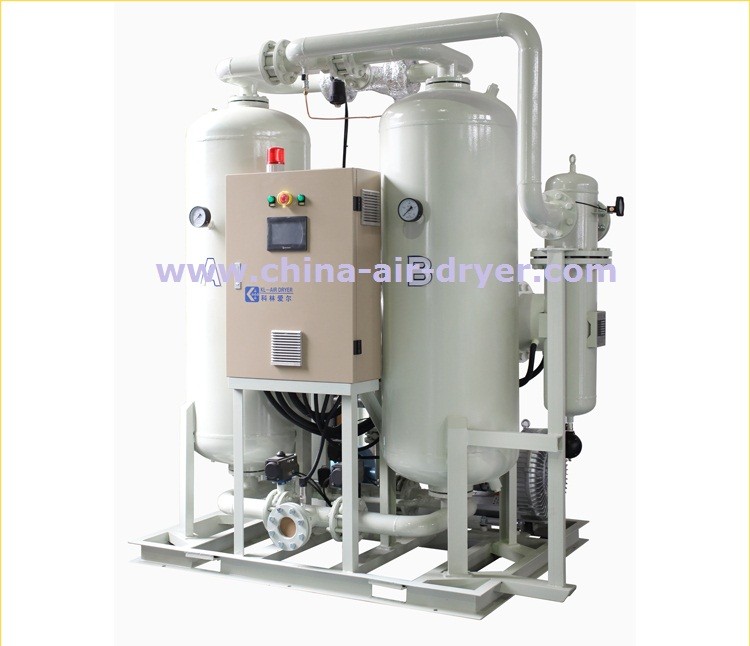

Zero Loss Blower Heater Adsorption Compressed Air Dryer
Descriptions
KXB series Blower purge desiccant compressed air dryer uses air blower and external electrical heater to produce purge air for desiccant regeneration.
The blower intakes atmospheric air flow through the heater, then through the desiccant media thereby regenerating it. With this design, no dried compressed air is consumed for regeneration, which maximizes the amount delivered to the air system. Blower heater Air Dryer is usually suitable for large flow from 23 -510m3/min ,outlet air pressure dew point is -40°C.
Standard Features

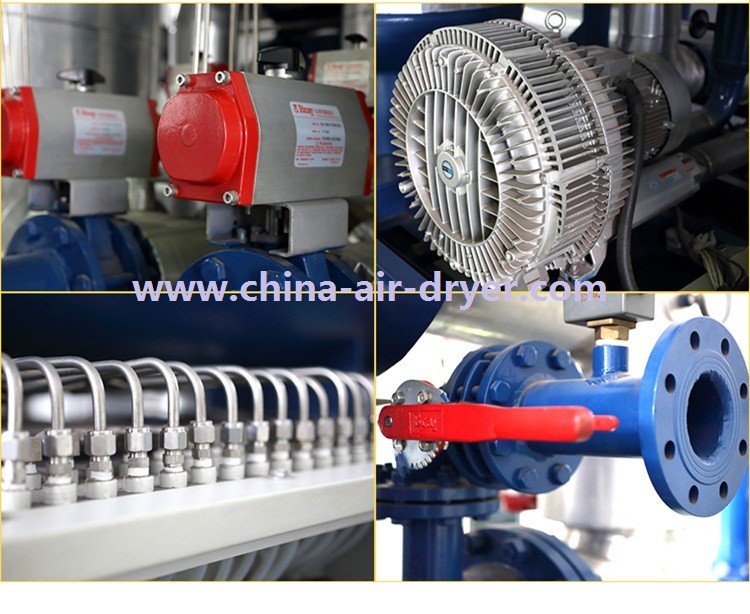

High Performance pneumatic Valves
Oil-less pneumatic valves are designed specifically for high temperature applications and feature stainless steel internals and filled PTFE seats.
Low wattage heater with high temperature interlock
Low-wattage high incoloy sheathed heater for efficient regeneration.
Heater high temperature with interlock alarm provides continuous monitoring of heater sheath temperature. The heater will de-energize in a high temperature condition.
High Efficiency Centrifugal Blower
Reliable, quiet generation of purge air. Intake filter is positioned for convenient access to
facilitate filter element changeout.
High performanced desiccants
Double fixed bed layers, respectively filled with high performanced activated alumina and molecular sieve.
Advanced PLC controller
PLC Controlling system executes and monitors all dryer functions, 7’’ Touch screen panel displays dryer status.
Dew Point Display
Highly accurate ceramic dew point sensor and high dew point alarm.
Pressure Gauges
Stainless steel gauges, located on each tower, provide visual indication of pressure during drying and regeneration processes.
Large Purge Mufflers
Large mufflers minimize noise and include built-in safety relief valves.
Comprehensive presentation
Different types of the same product
Specifications
Model | Flow Capacity | Heater (kw) | Blower | Inlet/outlet Connection | Dimensions | Weight | |||
m3/min | CFM | (kw) | L(mm) | W(mm) | H(mm) | (kg) | |||
KXB-200 | 23 | 812 | 15 | 3.3 | DN80 | 1560 | 1630 | 2780 | 1380 |
KXB-250 | 27 | 953 | 18 | 4.2 | DN80 | 1870 | 1830 | 2880 | 1720 |
KXB-300 | 34 | 1200 | 24 | 5.5 | DN80 | 2090 | 1990 | 3070 | 2060 |
KXB-400 | 45 | 1588 | 32.4 | 7.2 | DN100 | 2530 | 2180 | 2920 | 2750 |
KXB-500 | 55 | 1941 | 42 | 8.8 | DN100 | 2750 | 2390 | 3100 | 3430 |
KXB-600 | 65 | 2294 | 48 | 10.8 | DN125 | 2920 | 2510 | 3080 | 4120 |
KXB-800 | 87 | 3071 | 64.8 | 13.8 | DN150 | 3040 | 2780 | 3120 | 5500 |
KXB-1000 | 110 | 3883 | 81 | 17.5 | DN150 | 3210 | 2920 | 3200 | 6300 |
KXB-1200 | 130 | 4589 | 95.4 | 20.8 | DN150 | 3380 | 3080 | 3280 | 7810 |
KXB-1500 | 160 | 5648 | 119.7 | 25.8 | DN200 | 3520 | 3180 | 3410 | 9200 |
KXB-2000 | 210 | 7413 | 162 | 34.5 | DN200 | 3680 | 3320 | 3560 | 11300 |
KXB-2500 | 260 | 9178 | 205.2 | 43.2 | DN250 | 3720 | 3400 | 3640 | 14000 |
KXB-3000 | 320 | 10943 | 240 | 51.8 | DN250 | 3820 | 3480 | 3720 | 14900 |
KXB-3500 | 360 | 12708 | 285 | 59.2 | DN300 | 3950 | 3560 | 3810 | 16200 |
KXB-4000 | 410 | 1447 | 318 | 67.8 | DN300 | 4520 | 3720 | 3890 | 17900 |
KXB-5000 | 510 | 18003 | 398 | 78.2 | DN350 | 5380 | 3980 | 3970 | 19200 |
