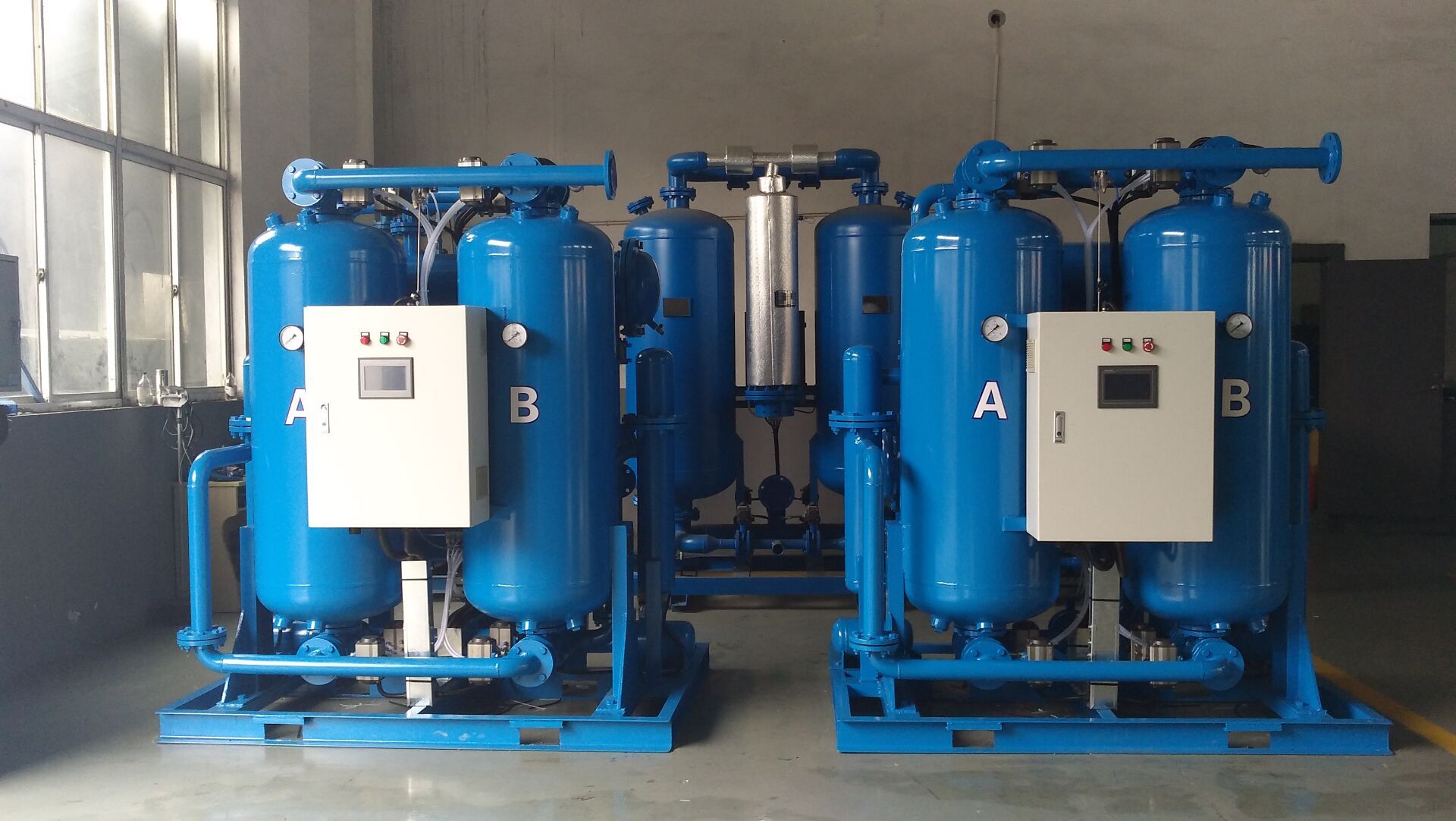

Large Capacity heat of compression dryer for centrifugal compressor

Large Capacity heat of compression dryer for centrifugal compressor

Large Capacity heat of compression dryer for centrifugal compressor
Large Capacity heat of compression dryer for centrifugal compressorLarge Capacity heat of compression dryer for centrifugal compressorLarge Capacity heat of compression dryer for centrifugal compressor
CategoriesKXC Heat of compression air dryer
BrandKL
ModelKXC
FOB portShanghai, Ningbo
Terms of PaymentL/C, T/T, Western Union
Update TimeOct 12,2024
Detail Information

Introduction
Heat of compression air dryer is the use of compressed air drying absorber air compressor gas energy conversion when the heat generated by direct heating or hot compressed air to regeneration of the desiccant air drying equipment; no regeneration heater, gas consumption is regenerationless, the greatest degree of conservation of energy.

This equipment adopts PLC automatic control, simple, safe and reliable, renewable gas consumption is small, stable dew point, dew point requirements may be set according to the duty cycle and so on.






Features
4h long period by switching mode, the whole general properties.
Complete regeneration process method used, recycled high-temperature heat using large flow of compressed air, can be very thorough regeneration of adsorbent
Remove the set regeneration heater, no consumption of electricity, saving energy required for regeneration.
Step sequence to increase the cold wind, making the outlet air dew point is stable and effective to ensure air quality.
Device integration, the whole factory.

Main Technical Data

Working pressure      5 -10 bar

Inlet temperature      ≤45℃

Ambient temperature  ≤45℃

Pressure Dew point    ≤ -40℃

Purge loss            2%

Switch time          2h/4h

Pressure drop        ≤ 0.21bar

Desiccant            activated alumina

Inlet oil content      ≤ 0.1ppm(w)

Control method       PLC controller

Power supply         220V/1PH/50Hz


Specifications

   Model

      Flow  Capacity

Water Flow            (T/h)

Dimensions

Air Conn.

Weight

(kg)

m3/min

CFM

L(mm)

W(mm)

H(mm)

KXC-200

23

812

8.6

2070

1030

2310

DN80

1480

KXC-250

27

953

10.8

2410

1200

2430

DN80

1720

KXC-300

34

1200

12.8

2740

1350

2650

DN80

1980

KXC-400

45

1588

17.2

2900

1510

2780

DN100

2500

KXC-500

55

1941

21.4

3050

1690

2830

DN100

3130

KXC-600

65

2294

26.5

3190

1810

2880

DN125

3920

KXC-800

87

3071

34.5

3300

1920

2910

DN150

4650

KXC-1000

110

3883

43.1

3520

2100

2990

DN150

5960

KXC-1200

130

4589

52.3

3700

2330

3170

DN150

6530

KXC-1500

160

5648

65

3900

2450

3200

DN200

5007

KXC-2000

210

7413

90

4680

2750

3510

DN200

9230

KXC-2500

260

9178

108

5400

3000

3720

DN250

12400

KXC-3000

320

10943

132

6900

3300

3940

DN250

14300

KXC-3500

360

12708

161

7540

3470

3920

DN300

15900
