Home > Products > Compressed Air filter >

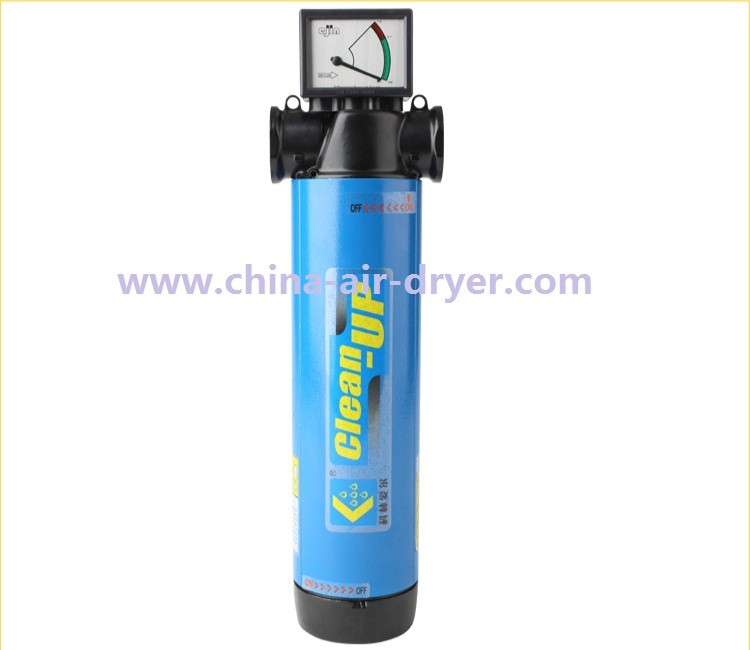

Compressed Air Filter

Compressed Air Filter

Compressed Air Filter
Compressed Air FilterCompressed Air FilterCompressed Air FilterCompressed Air FilterCompressed Air Filter
CategoriesCompressed Air filter
AlbumView larger image
BrandKL
Model35-D-G
Medium MaterialActive Carbon
Capacity1.6m3/min
Working pressure2-16bar

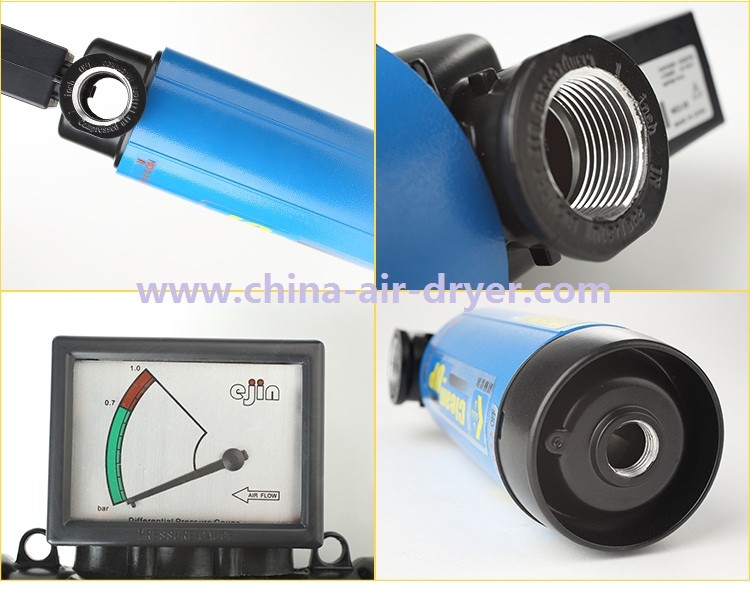

Accessories 1different-pressure indicator
Accessories 2auto-drainer
L*W(mm)260*107
Weight2.8kg
FOB portShanghai 、Ningbo
Terms of PaymentL/C, T/T, Western Union
Update Time2018-12-14
Detail Information

KL Compressed Air Filter Removing compressed air contaminant efficiently

KL filter provides high quality compressed air for users, filter is sold in more than 20 countries and districts.

Installing KL compressed air filter can ultimately remove compressed air pollutants. (such as oil, water and dust etc.) Ensuring user’s maximum clean compressed air.

KL company have 5 kinds of compressed air filter for your choose:

CLASS  C   Main pipe dust filter ----3micron3ppm

CLASS  T  Main pipe oil/water filter ----1micron1ppm

CLASS  A  High efficient oil filter ----0.01micron0.01ppm

CLASS  F  Supper high efficient oil filter----0.01micron0.001ppm

CLASS  H  Activated carbon micro oil moisture filter----0.01micron0.003ppm


Comprehensive presentation






Specifications


ModelFlow(m3/min)Pipe Connector CaliberLength*WildthFilter ElementWeight(kg)
ModelNumber
(Class)-351.6ZG1260*107(Class)-35E12.8
(Class)-702.6ZG1305*107(Class)-70E13.1
(Class)-1003.8ZG1365*107(Class)-100E14.2
(Class)-1505ZG1-1/2420*130(Class)-150E15
(Class)-2007ZG1-1/2550*135(Class)-200E16.8
(Class)-3008.5ZG1-1/2635*135(Class)-300E17.3
(Class)-40013.5ZG2760*170(Class)-400E119.2
(Class)-60017ZG2820*170(Class)-600E123
(Class)-80023ZG21060*170(Class)-800E128



Factory and show room


Exhibition



Certificate



Packaging & Shipment


Delivery time
Generally 10~12 working days after the order confirmed

Packaging
1) Custom package request is appreciate.
2) Standard package: Corrugate carton
