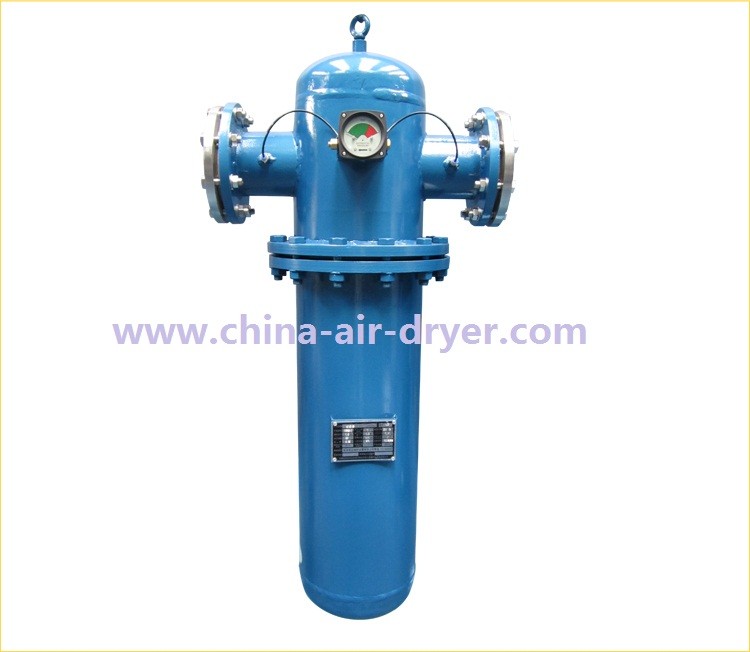

Flange Precise Air Filter with Differential Pressure Gauge

Flange Precise Air Filter with Differential Pressure Gauge

Flange Precise Air Filter with Differential Pressure Gauge
CategoriesCompressed Air filter
AlbumView larger image
BrandKL
ModelC,T,A,H,F
Nomal Inlet pressure7bar
Max. inlet pressure10bar
Vessel StandardChina GB, CE PED, ASME
Drain typeExternal automatic drain

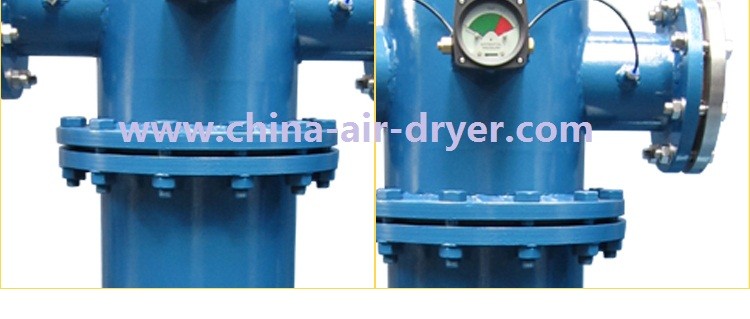

OptionalDifferential pressure gauge
Terms of PaymentL/C, T/T, Western Union
Update Time2018-10-20
Detail Information

Descriptions

Class C Main Pipe Dust Filter

 Applicable to filter out mass of liquid and condensed matter > 3m(3ppmw/w maximum remain oil)



Class T Main Pipe Coalescing air  Filter

 Applicable to filter out liquid water and oil and > 1μm solid particles(1.0 ppmw/w maximum remain oil)





Class A High Efficient Coalescing Filter

Applicable to micro condensed water vapor and oil moisture and filter out > 0.01m solid particles(0.01 ppmw/w maximum remain oil)



Class F SuperOil removal air Filter

Applicable to super micro condensed water vapor and oil moisture and filter out > 0.01m solid particles(0.001 ppmw/w maximum remain oil)



Class H Activated Carbon Air Filter

Applicable to filter out oil moisture and hydrocarbon which can be absorbed by the activated carbon and > 0.01m solid particles (0.003 ppmw/w maximum remain oil)



CLASS  C   Main pipe dust filter ----3micron,3ppm

CLASS  T  Main pipe oil/water filter ----1micron,1ppm

CLASS  A  High efficient oil filter ----0.01micron,0.01ppm

CLASS  F  Supper high efficient oil filter----0.01micron,0.001ppm

CLASS  H  Activated carbon micro oil moisture filter----0.01micron,0.003ppm




Comprehensive presentation






Specifications



ModelFlow(m3/min)Pipe Connector CaliberLength*WildthFilter ElementWeight(kg)
ModelNumber
(Class)-90023DN651130*430(Class)-400E279
(Class)-120034DN801130*430(Class)-600E285
(Class)-160045DN1001300*430(Class)-800E2115
(Class)-200055DN1001200*540(Class)-600E3128
(Class)-240065DN1251360*540(Class)-800E3135
(Class)-300087DN1501425*600(Class)-800E4155
(Class)-4000110DN1501425*600(Class)-800E5158
(Class)-4800130DN1501455*600(Class)-800E6170
(Class)-5600160DN2001480*740(Class)-800E8245



Factory and show room


Exhibition



Certificate

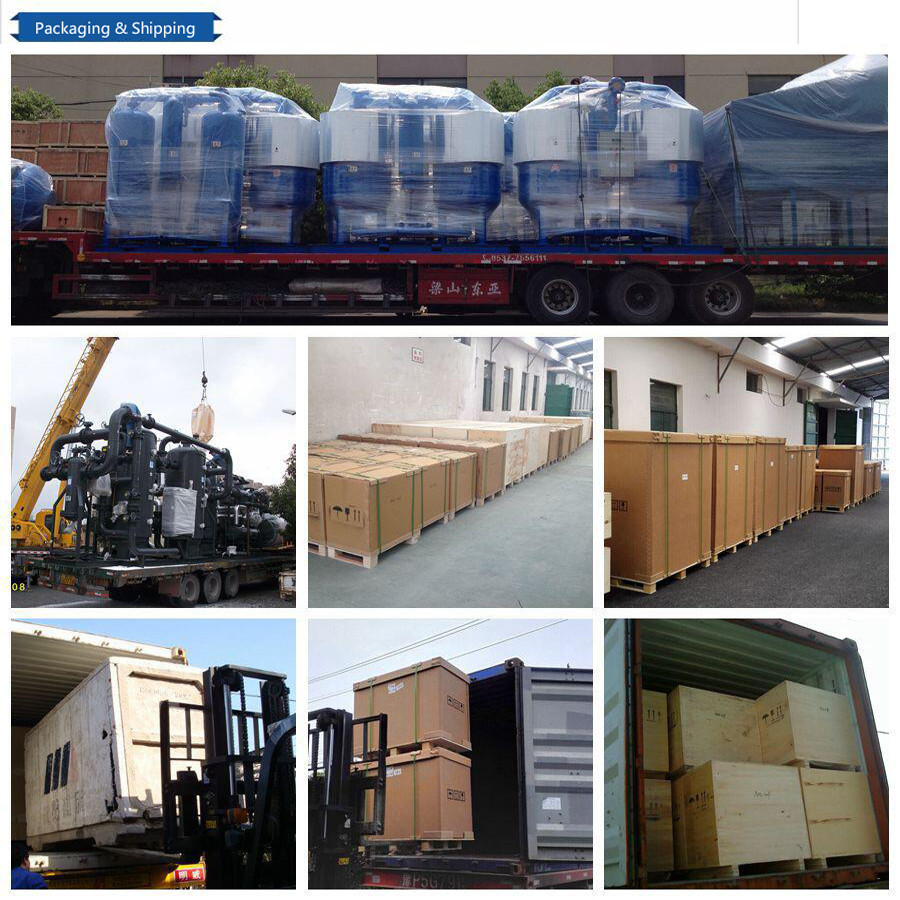

Packaging & Shipment


Delivery time
Generally 10~12 working days after the order confirmed

Packaging
1) Custom package request is appreciate.
2) Standard package: Corrugate carton
