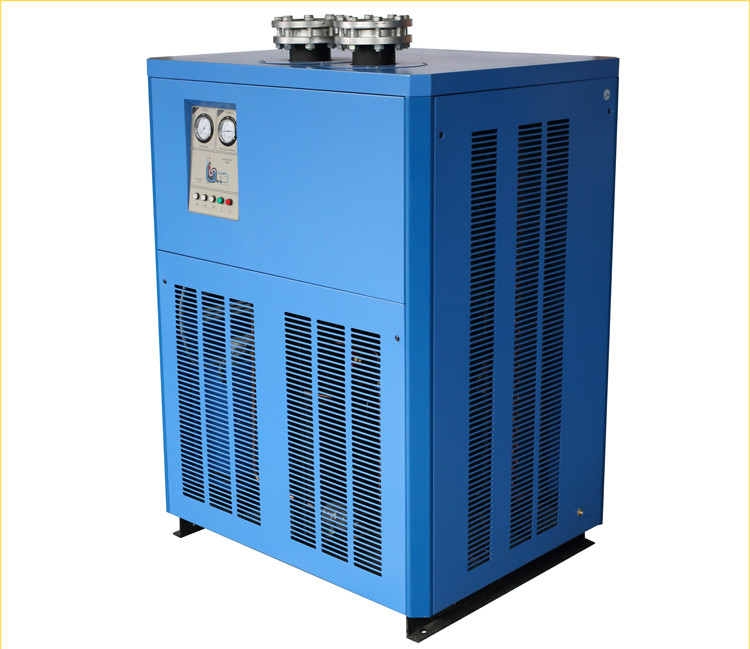

normal inlet temperature R407c 800cfm air cooled refrigerated air dryer
normal inlet temperature R407c 800cfm air cooled refrigerated air dryer
Categories | KDL series small air dryer |
---|---|
Brand | KL |
Model | KDL-150F |
Cooling type | Air cooled mid-capacity refrigerated dryer |
Flow capacity | 800CFM |
Refrigerant | R134a,R407c,R410a |
Evaporator | Plate heat exchanger |
Dew point | 2-10°C |
Max inlet temperature | 45°C |
Ambient temperature | 40°C |
Working pressure | 7-10Bar |
Voltage | 380V-50Hz-3Ph |
FOB port | Shanghai 、Ningbo |
Terms of Payment | L/C, T/T |
Update Time | Oct 12,2024 |
R407c 800cfm refrigerated air dryer
Features
1.High-efficiency aluminum plate heat exchanger
2.More compact structure to reduce size and weight.
3. Lower power consumption and low pressure drop for energy saving
4.Constant dew point temperature
5.Stable performance for long time running
6. Easy to maintenance
KDL series :
Max inlet temperature: 45 oC
ambient temperature≤40oC
working pressure:7-10Bar
DEE-POINT TEM:2-10oC
Comprehensive presentation
Specifications
Model | Flow Capacity | Power cons. (kw) | Conn. | Dimensions | Weight | ||||
m3/min | m3/h | CFM | (BSP) | L (mm) | W(mm) | H (mm) | (kg) | ||
KDL-150F | 17 | 1020 | 600 | 2.43 | 2” | 950 | 800 | 1280 | 175 |
KDL-200F | 23 | 1380 | 812 | 3.28 | 2” | 950 | 800 | 1280 | 210 |
KDL-250F | 27 | 1620 | 953 | 3.98 | DN65 | 950 | 1100 | 1430 | 300 |
KDL-300F | 34 | 2040 | 1200 | 5.72 | DN80 | 1050 | 1150 | 1430 | 380 |
KDL-400F | 45 | 2700 | 1588 | 6.42 | DN100 | 1050 | 1150 | 1480 | 480 |
KDL-500F | 55 | 3300 | 1941 | 8.64 | DN100 | 1850 | 1150 | 1600 | 600 |
KDL-600F | 65 | 3900 | 2294 | 10.58 | DN125 | 1850 | 1150 | 1600 | 680 |
KDL-800F | 87 | 5220 | 3071 | 12.52 | DN150 | 1650 | 1250 | 1800 | 780 |
KDL-1000F | 110 | 6600 | 3883 | 17 | DN150 | 2000 | 1250 | 1800 | 980 |
