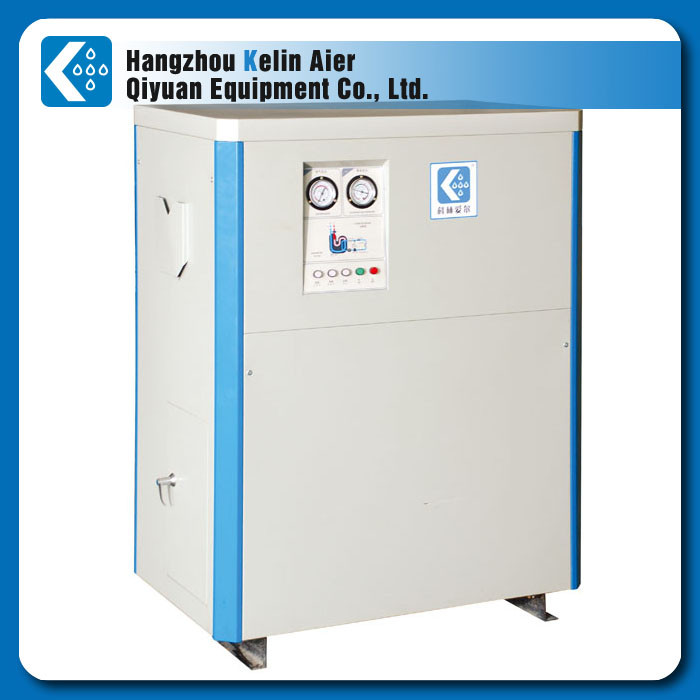

600cfm water Cooled type refrigerated air dryer with R407c gas
600cfm water Cooled type refrigerated air dryer with R407c gas
Categories | KDL series small air dryer |
---|---|
Brand | KL |
Model | KDL-W |
Cooling type | water cooled |
Refrigerant | R134a,R407c,R410a,R22 |
Evaporator | Plate heat exchanger |
Max inlet temperature | 45°C |
Ambient temperature | 40°C |
Dew point | 2-10°C |
Working pressure | 7-10Bar |
Voltage | 380V/3PH/50HZ |
Cooling water pressure | 2-4Bar |
Inlet water temperature | 32°C |
FOB port | Shanghai、Ningbo |
Terms of Payment | L/C, T/T |
Update Time | Oct 12,2024 |
600cfm water cooling type refrigerated air dryer
KDL series :
Max inlet temperature:45oC
ambient temperature≤40oC
working pressure:7-10Bar
DEE-POINT TEM:2-10oC
Cooling water pressure: 2-4bar
Cooling water temperature: less than 32Deg.C
Comprehensive presentation

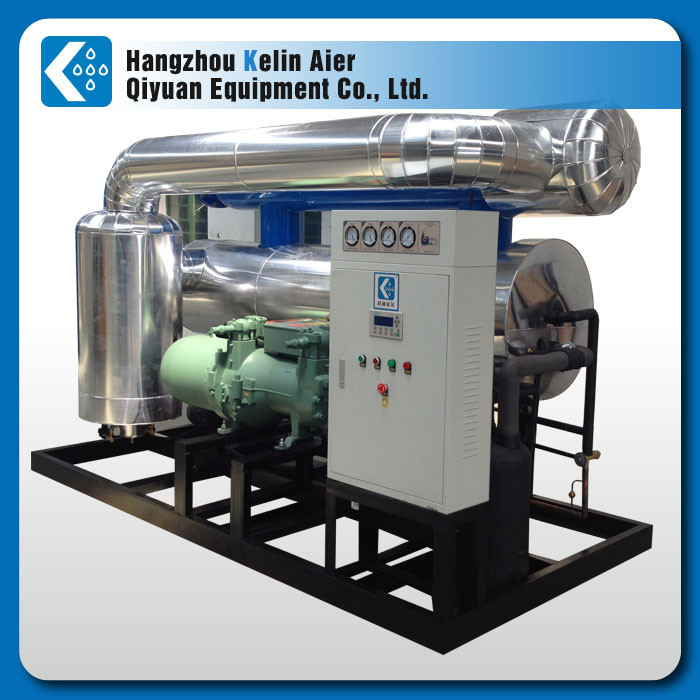

ADL large type water cooled air dryer
Specifications
Model | Flow Capacity | Power | Connection | water flow | Dimensions | Weight | ||||
m3/min | CFM | (kw) | Air | Water | (m3/h) | L(mm) | W(mm) | H(mm) | (kg) | |
KDL-150W | 17 | 600 | 2.04 | 2” | 1/2” | 1.8 | 950 | 800 | 1280 | 165 |
KDL-200W | 23 | 812 | 2.9 | 2” | 3/4” | 2.4 | 950 | 800 | 1280 | 190 |
KDL-250W | 27 | 953 | 3.5 | 2” | 3/4” | 3.2 | 950 | 860 | 1430 | 280 |
KDL-300W | 34 | 1200 | 4.8 | DN65 | 1” | 3.7 | 1100 | 910 | 1430 | 360 |
KDL-400W | 45 | 1588 | 5.5 | DN80 | 1” | 4.7 | 1100 | 910 | 1480 | 450 |
KDL-500W | 55 | 1941 | 7.5 | DN100 | 11/2” | 6.2 | 1150 | 910 | 1600 | 580 |
KDL-600W | 65 | 2294 | 9.2 | DN100 | 11/2” | 7.6 | 1150 | 910 | 1600 | 650 |
KDL-800W | 87 | 3071 | 11 | DN125 | 2” | 9 | 1400 | 1000 | 1600 | 750 |
Delivery time
Generally 15~20 working days after the order confirmed
Packaging
1) Custom package request is appreciate.
2) Standard package: Corrugate carton
