Air cooled refrigerated air dryer

Air cooled refrigerated air dryer

Air cooled refrigerated air dryer
CategoriesAir Cooled Dryer
AlbumView larger image
BrandKL
ModelKDL-150F
Cooling typeAir cooled
Flow capacity17m3/min
RefrigerantR134a,R407c,R410a,R22
EvaporatorPlate heat exchanger
Dew point2-10°C
Max inlet temperature45°C
Ambient temperature40°C
Working pressure7-10Bar
Voltage380V-50Hz-3Ph
FOB portShanghai 、Ningbo
Terms of PaymentL/C, T/T
Update Time2018-10-20
Detail Information

KDL-F Series Refrigerated Air Dryer (Air cooled Normal Temperature)

Features

1.High-efficiency stainless steel plate heat exchanger

2.More compact structure to reduce size and weight.

3. Lower power consumption and low pressure drop for energy saving

4.Constant dew point temperature

5.Stable performance for long time running

6. Easy to maintenance

KDL series :

                     Max inlet temperature: 45 oC

                     ambient temperature≤40oC

                     working pressure:7-10Bar

                     DEE-POINT TEM:2-10oC

Comprehensive presentation





Specifications


  Model  Flow  Capacity Power cons. (kw)Conn.       DimensionsWeight
m3/minm3/hCFM(BSP)L (mm)W(mm)H (mm)(kg)
KDL-150F1710206002.432”9508001280175
KDL-200F2313808123.282”9508001280210
KDL-250F2716209533.98DN6595011001430300
KDL-300F34204012005.72DN80105011501430380
KDL-400F45270015886.42DN100105011501480480
KDL-500F55330019418.64DN100185011501600600
KDL-600F653900229410.58DN125185011501600680
KDL-800F875220307112.52DN150165012501800780
KDL-1000F1106600388317DN150200012501800980

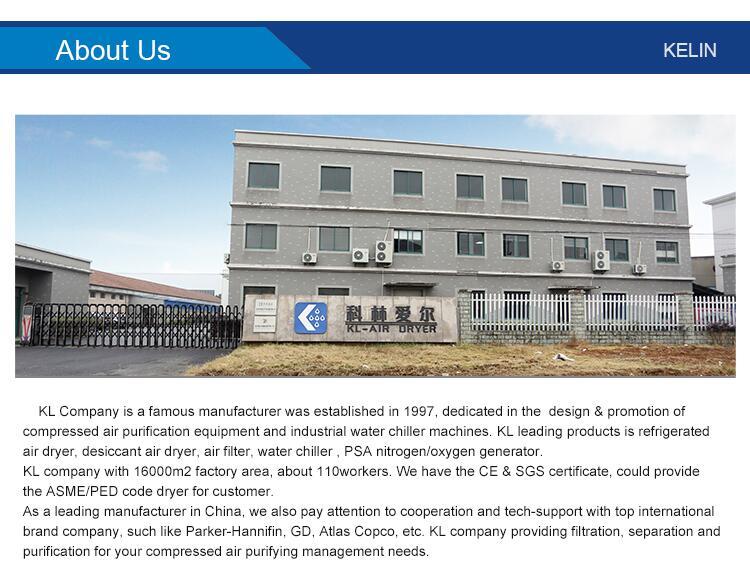

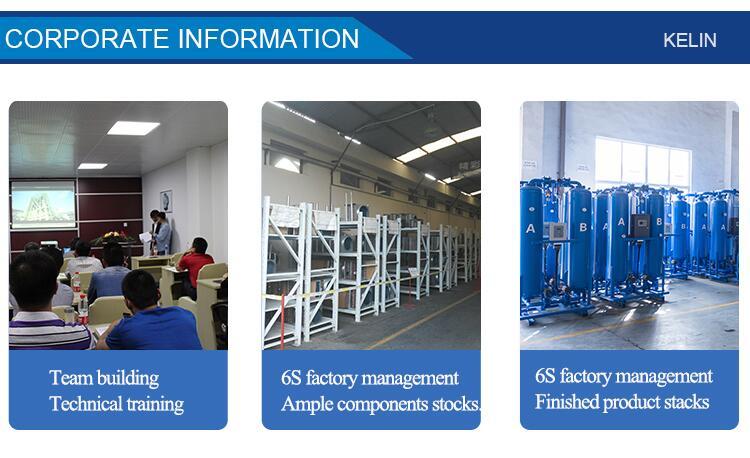

Factory and show room



Exhibition



Certificate



Packaging & Shipment


Delivery time
Generally 10~12 working days after the order confirmed

Packaging
1) Custom package request is appreciate.
2) Standard package: Corrugate carton
