water cooling high inlet temperature refrigerated air dryer with PLC controller

water cooling high inlet temperature refrigerated air dryer with PLC controller

water cooling high inlet temperature refrigerated air dryer with PLC controller
water cooling high inlet temperature refrigerated air dryer with PLC controllerwater cooling high inlet temperature refrigerated air dryer with PLC controller
Categorieslarge capactity compressed air dryer
BrandKL
Terms of PaymentL/C, T/T, Western Union
Update TimeOct 12,2024
Detail Information

Large refrigeration air dryer with CE  --- KL air dryer factory with CE and TUV report.



 KL with full series refrigerated dryer for customer choose:

 1. 0.7~60m3/min plate heat exchanger dryer ;

 2. 60~500m3/min shell tube dryer. with air cooling or water cooling, Option: ASME standard pressure vessel;

 3. Non-standard dryer:  Speical gas dryer ( Biogas/ H2...); Anti-explosion dryer; High pressure dryer (20~100bar); skid-mounted dryer as customer's requirement...

refrigeration air dryer with CE



Comprehensive presentation

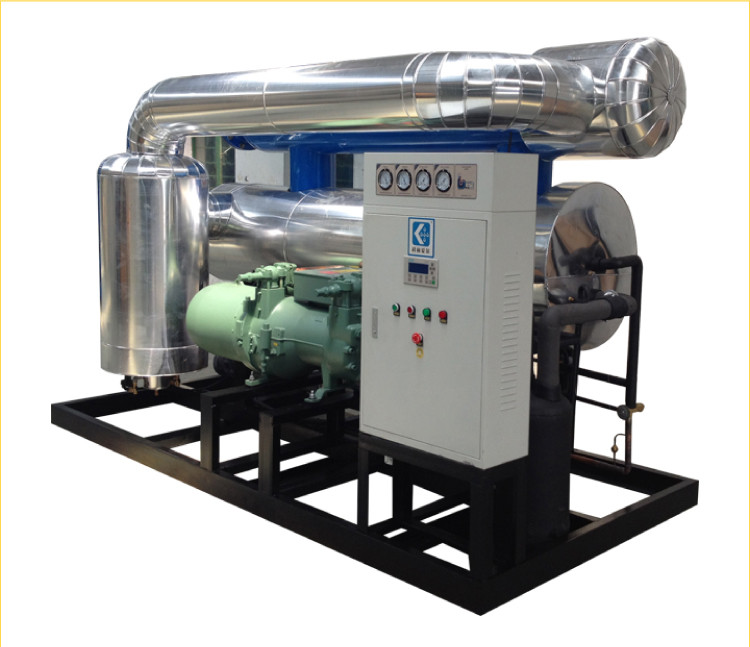

large capacity 200m3/min compressor refrigerated air dryer

 1.  Shell tube design, high heat exchange efficient and energy-saving ;

 2. Refrigerated compressor use Hanbell/Bizter brand , R134a/R407c /R410 friendly-environment gas;

 3. All dryer with hot gas by-pass valve;

 4. Condenser with blue hydrophilic film, it good for rust-poof;

 5. Siemens PLC controller & Schneider electrical components make sure the power supply;

 6. Every KL dryer with 24hours quality testing before shipmnet, 13months warranty time guarante


Specifications

 Model  Flow  Capacity  PowerConnectionwater flow  Dimensions   Weight
m3/min(kw)          .. (m3/h)L(mm)W(mm)H(mm)(kg)
ADL-1500W16026.25DN65223300175020002200
ADL-2000W21037.5DN65283800175020002500
ADL-2500W26045DN80363400185024002800
ADL-3000W32052.5DN100403600200024603000
ADL-3500W36060DN100444200230025003800
ADL-4000W41075DN100584500232026004300
ADL-5000W51090DN125754650235027005000
