Large Refrigerated Air Dryer

Large Refrigerated Air Dryer

Large Refrigerated Air Dryer
CategoriesLarge Capacity Dryer
AlbumView larger image
BrandKL
ModelADL-W
Cooling typeAir cooled
RefrigerantR134a,R407c,R410a,R22
Max inlet temperature45°C
Ambient temperature40°C
Dew point2-10°C
Working pressure7-10Bar
Voltage380V/3PH/50HZ
Cooling water pressure2-4Bar
Inlet water temperature32°C
FOB portShanghai 、Ningbo
Terms of PaymentL/C, T/T, Western Union
Update Time2018-10-20
Detail Information

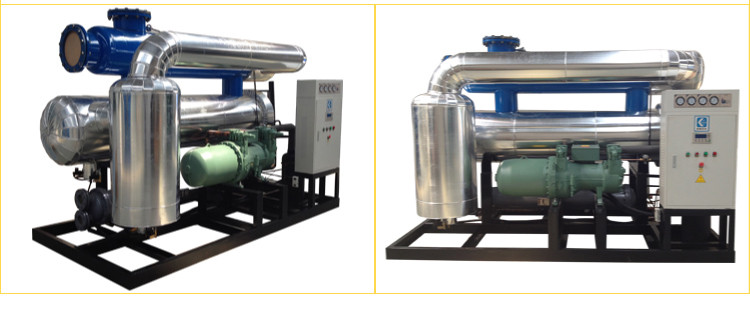

ADL-W Series Refrigerated Air Dryer (Water cooled normal  temperature)




 Features

1. Constant dewpoint temperature

2.Stable performance for long time running

3.External type drain for easy maintenance

4. Low pressure drop for energy saving




Option

1. Environmentallyfriendly refrigerant, such as R407C and R134a

2. Specialpower supply

3. NPTconnection

4. Dew point indicator


Comprehensive presentation






Specifications

 Model  Flow  Capacity  PowerConnectionwater flow  Dimensions   Weight
m3/min(kw)          .. (m3/h)L(mm)W(mm)H(mm)(kg)
ADL-1500W16026.25DN65223300175020002200
ADL-2000W21037.5DN65283800175020002500
ADL-2500W26045DN80363400185024002800
ADL-3000W32052.5DN100403600200024603000
ADL-3500W36060DN100444200230025003800
ADL-4000W41075DN100584500232026004300
ADL-5000W51090DN125754650235027005000

Factory and show room



Exhibition



Certificate



Packaging & Shipment


Delivery time
Generally 10~12 working days after the order confirmed

Packaging
1) Custom package request is appreciate.
2) Standard package: Corrugate carton
