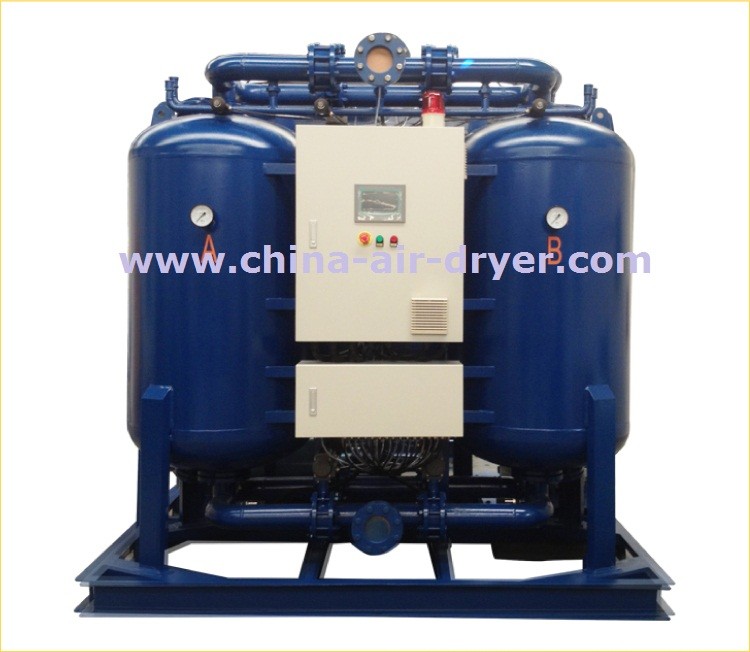

2% Heated Regenerative Compressed Air Dryer for oil-free air comprssor

2% Heated Regenerative Compressed Air Dryer for oil-free air comprssor

2% Heated Regenerative Compressed Air Dryer for oil-free air comprssor
2% Heated Regenerative Compressed Air Dryer for oil-free air comprssor2% Heated Regenerative Compressed Air Dryer for oil-free air comprssor2% Heated Regenerative Compressed Air Dryer for oil-free air comprssor2% Heated Regenerative Compressed Air Dryer for oil-free air comprssor
CategoriesKXB blower purge desiccant dryer
BrandKL
ModelKXB-500
Flow capacity55m3/min
Nomal Inlet pressure7bar
Max. inlet pressure10bar
Pressure dew point-40°C
Purge loss2%
Vessel StandardChina GB, CE PED, ASME
Switch time4 hours(adjustable)
ControllerPLC
Power supply380V-3phase-50hz
FOB portShanghai 、Ningbo
Terms of PaymentL/C, T/T
Update TimeOct 12,2024
Detail Information

2% Heated desiccant air dryer for oil-free air comprssor

Descriptions

KXB series Blower purge desiccant compressed air dryer uses air blower and external electrical heater to produce purge air for desiccant regeneration.

The blower intakes atmospheric air flow through the heater, then through the desiccant media thereby regenerating it. With this design, no dried compressed air is consumed for regeneration, which maximizes the amount delivered to the air system. Blower heater Air Dryer is usually suitable for large flow from 23 -510m3/min ,outlet air pressure dew point is -40°C.

Standard Features

High Performance pneumatic Valves

Oil-less pneumatic valves are designed specifically for high temperature applications and feature stainless steel internals and filled PTFE seats.

Advanced PLC controller

PLC Controlling system executes and monitors all dryer functions, 7’’ Touch screen panel displays dryer status.

Dew Point Display

Highly accurate ceramic dew point sensor and high dew point alarm.

Pressure Gauges

Stainless steel gauges, located on each tower, provide visual indication of pressure during drying and regeneration processes.

Large Purge Mufflers

Large mufflers minimize noise and include built-in safety relief valves.


Comprehensive presentation



Different types of the same product


720

Specifications


  Model   Flow  Capacity Heater (kw)BlowerInlet/outlet ConnectionDimensionsWeight
m3/minCFM(kw)L(mm)W(mm)H(mm)(kg)
KXB-20023812153.3DN801560163027801380
KXB-25027953184.2DN801870183028801720
KXB-300341200245.5DN802090199030702060
KXB-40045158832.47.2DN1002530218029202750
KXB-500551941428.8DN1002750239031003430
KXB-6006522944810.8DN1252920251030804120
KXB-80087307164.813.8DN1503040278031205500
KXB-100011038838117.5DN1503210292032006300
KXB-1200130458995.420.8DN1503380308032807810
KXB-15001605648119.725.8DN2003520318034109200
KXB-2000210741316234.5DN20036803320356011300
KXB-25002609178205.243.2DN25037203400364014000
KXB-30003201094324051.8DN25038203480372014900
KXB-35003601270828559.2DN30039503560381016200
KXB-40004101447331867.8DN30045203720389017900
KXB-50005101800339878.2DN35053803980397019200
