2% air loss Energy Saving Blower Purge Desiccant Compressed Air Dryer with heater
2% air loss Energy Saving Blower Purge Desiccant Compressed Air Dryer with heater
Categories | KXB blower purge desiccant dryer |
---|---|
Brand | KL |
Model | KXB-300 |
Flow capacity | 34m3/min |
Nomal Inlet pressure | 7bar |
Max. inlet pressure | 10bar |
Pressure dew point | -40°C |
Purge loss | 0%/2% |
Vessel Standard | China GB, CE PED, ASME |
Switch time | 4 hours(adjustable) |
Controller | PLC |
Power supply | 380V-3phase-50hz |
FOB port | Shanghai 、Ningbo |
Terms of Payment | L/C, T/T |
Update Time | Oct 12,2024 |

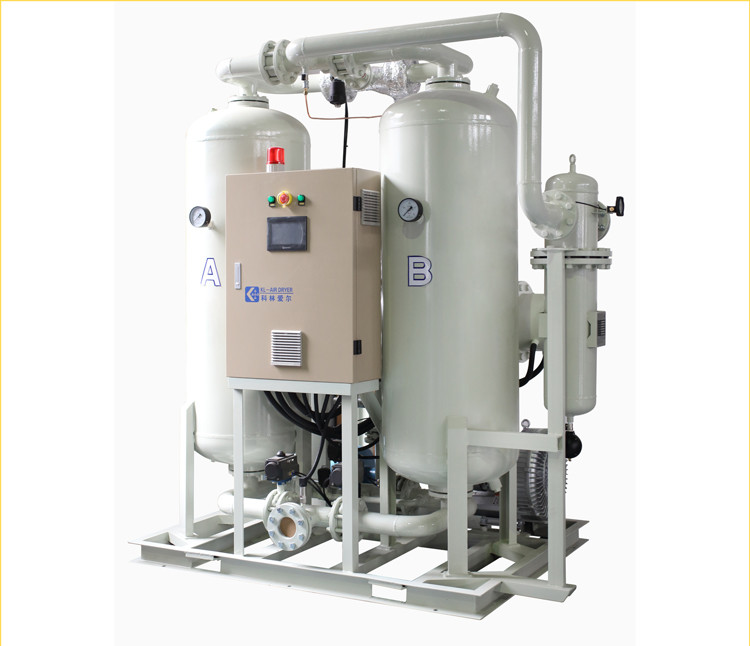

2% air loss Blower Purge Desiccant Compressed Air Dryer
Descriptions
KXB series Blower purge desiccant compressed air dryer uses air blower and external electrical heater to produce purge air for desiccant regeneration.
The blower intakes atmospheric air flow through the heater, then through the desiccant media thereby regenerating it. With this design, no dried compressed air is consumed for regeneration, which maximizes the amount delivered to the air system. Blower heater Air Dryer is usually suitable for large flow from 23 -510m3/min ,outlet air pressure dew point is -40°C.
Standard Features
High Performance pneumatic Valves
Oil-less pneumatic valves are designed specifically for high temperature applications and feature stainless steel internals and filled PTFE seats.
High Efficiency Centrifugal Blower
Reliable, quiet generation of purge air. Intake filter is positioned for convenient access to
facilitate filter element changeout.
Advanced PLC controller
PLC Controlling system executes and monitors all dryer functions, 7’’ Touch screen panel displays dryer status.
Dew Point Display
Highly accurate ceramic dew point sensor and high dew point alarm.
Specifications
Model | Flow Capacity | Heater (kw) | Blower | Inlet/outlet Connection | Dimensions | Weight | |||
m3/min | CFM | (kw) | L(mm) | W(mm) | H(mm) | (kg) | |||
KXB-200 | 23 | 812 | 15 | 3.3 | DN80 | 1560 | 1630 | 2780 | 1380 |
KXB-250 | 27 | 953 | 18 | 4.2 | DN80 | 1870 | 1830 | 2880 | 1720 |
KXB-300 | 34 | 1200 | 24 | 5.5 | DN80 | 2090 | 1990 | 3070 | 2060 |
KXB-400 | 45 | 1588 | 32.4 | 7.2 | DN100 | 2530 | 2180 | 2920 | 2750 |
KXB-500 | 55 | 1941 | 42 | 8.8 | DN100 | 2750 | 2390 | 3100 | 3430 |
KXB-600 | 65 | 2294 | 48 | 10.8 | DN125 | 2920 | 2510 | 3080 | 4120 |
KXB-800 | 87 | 3071 | 64.8 | 13.8 | DN150 | 3040 | 2780 | 3120 | 5500 |
KXB-1000 | 110 | 3883 | 81 | 17.5 | DN150 | 3210 | 2920 | 3200 | 6300 |
KXB-1200 | 130 | 4589 | 95.4 | 20.8 | DN150 | 3380 | 3080 | 3280 | 7810 |
