Zero Loss Blower Heater Adsorption Compressed Air Dryer

Zero Loss Blower Heater Adsorption Compressed Air Dryer

Zero Loss Blower Heater Adsorption Compressed Air Dryer
CategoriesBlower Purge Desiccant Dryer
AlbumView larger image
BrandKL
ModelKXB-1200
Flow capacity130m3/min
Nomal Inlet pressure7bar
Max. inlet pressure10bar
Pressure dew point-40°C
Purge loss0%
Vessel StandardChina GB, CE PED, ASME
Switch time4 hours(adjustable)
ControllerPLC
Power supply380V-3phase-50hz
FOB portShanghai 、Ningbo
Terms of PaymentL/C, T/T
Update Time2018-12-14
Detail Information

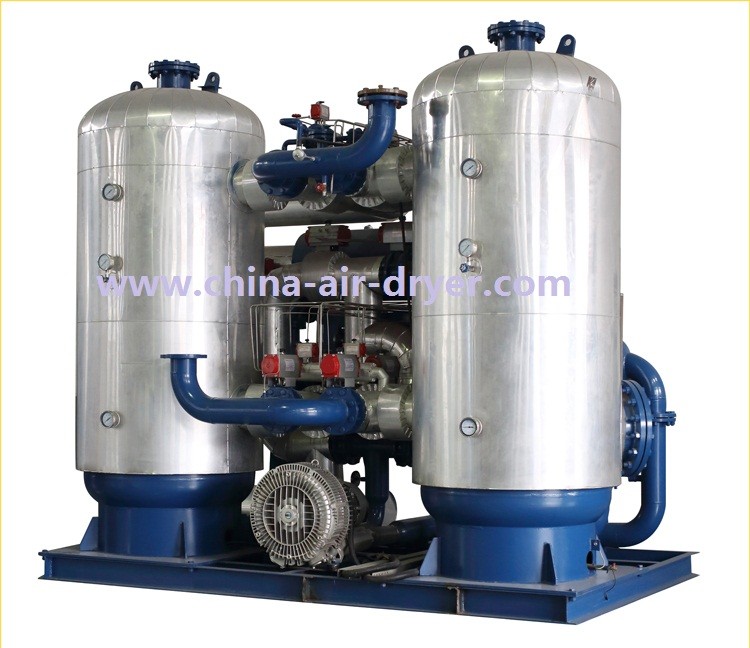

Zero Loss  Blower Heater Adsorption Compressed Air Dryer



Descriptions

KXB series Blower purge desiccant compressed air dryer uses air blower and external electrical heater to produce purge air for desiccant regeneration.



The blower intakes atmospheric air flow through the heater, then through the desiccant media thereby regenerating it. With this design, no dried compressed air is consumed for regeneration, which maximizes the amount delivered to the air system. Blower heater Air Dryer is usually suitable for large flow from 23 -510m3/min ,outlet air pressure dew point is -40°C.



Standard Features

High Performance pneumatic Valves

Oil-less pneumatic valves are designed specifically for high temperature applications and feature stainless steel internals and filled PTFE seats.



Low wattage heater with high temperature interlock

Low-wattage high incoloy sheathed heater for efficient regeneration.

Heater high temperature with interlock alarm provides continuous monitoring of heater sheath temperature. The heater will de-energize in a high temperature condition.



High Efficiency Centrifugal Blower

Reliable, quiet generation of purge air. Intake filter is positioned for convenient access to

facilitate filter element changeout.



High performanced desiccants

Double fixed bed layers, respectively filled with high performanced activated alumina and molecular sieve.



Advanced PLC controller

PLC Controlling system executes and monitors all dryer functions, 7’’ Touch screen panel displays dryer status.



Dew Point Display

Highly accurate ceramic dew point sensor and high dew point alarm.



Pressure Gauges

Stainless steel gauges, located on each tower, provide visual indication of pressure during drying and regeneration processes.



Large Purge Mufflers

Large mufflers minimize noise and include built-in safety relief valves.


Comprehensive presentation



Different types of the same product


720

Specifications


   Model    Flow  Capacity  Heater (kw)BlowerInlet/outlet ConnectionDimensionsWeight
m3/minCFM(kw)L(mm)W(mm)H(mm)(kg)
KXB-20023812153.3DN801560163027801380
KXB-25027953184.2DN801870183028801720
KXB-300341200245.5DN802090199030702060
KXB-40045158832.47.2DN1002530218029202750
KXB-500551941428.8DN1002750239031003430
KXB-6006522944810.8DN1252920251030804120
KXB-80087307164.813.8DN1503040278031205500
KXB-100011038838117.5DN1503210292032006300
KXB-1200130458995.420.8DN1503380308032807810
KXB-15001605648119.725.8DN2003520318034109200
KXB-2000210741316234.5DN20036803320356011300
KXB-25002609178205.243.2DN25037203400364014000
KXB-30003201094324051.8DN25038203480372014900
KXB-35003601270828559.2DN30039503560381016200
KXB-40004101447331867.8DN30045203720389017900
KXB-50005101800339878.2DN35053803980397019200


Factory and show room



Exhibition



Certificate



Packaging & Shipment


Delivery time
Generally 10~12 working days after the order confirmed

Packaging
1) Custom package request is appreciate.
2) Standard package: Corrugate carton
