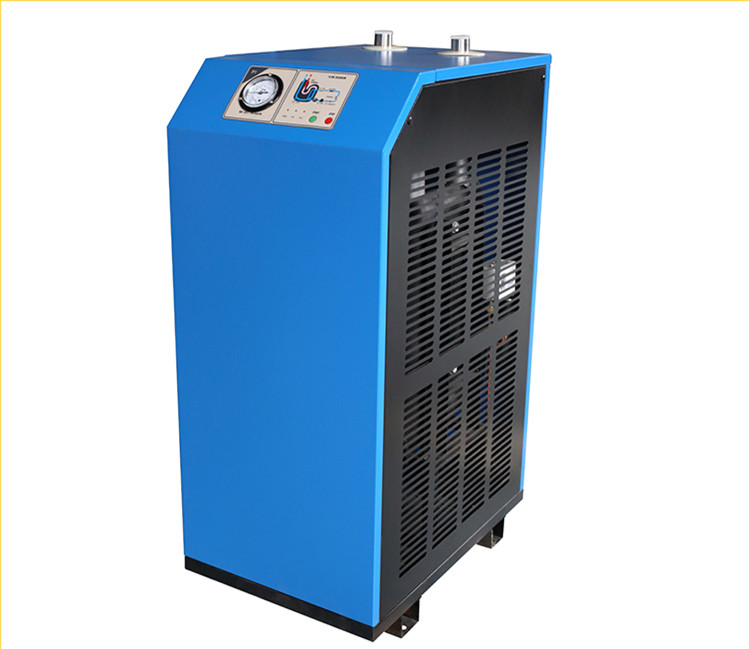

134cfm high temperature air cooling refrigerated air dryer 30hp compressor use dryer

134cfm high temperature air cooling refrigerated air dryer 30hp compressor use dryer

134cfm high temperature air cooling refrigerated air dryer 30hp compressor use dryer
134cfm high temperature air cooling refrigerated air dryer 30hp compressor use dryer134cfm high temperature air cooling refrigerated air dryer 30hp compressor use dryer134cfm high temperature air cooling refrigerated air dryer 30hp compressor use dryer134cfm high temperature air cooling refrigerated air dryer 30hp compressor use dryer134cfm high temperature air cooling refrigerated air dryer 30hp compressor use dryer
CategoriesKDH series small refrigerated air dryer
BrandKL
ModelKDH-30F
Cooling typeAir cooled
RefrigerantR134a,R407c,R410a
EvaporatorPlate heat exchanger
Max inlet temperature80°C
Ambient temperature40°C
Dew point2-10°C
Voltage220V/50Hz
Working pressure7-10Bar
FOB portShanghai 、Ningbo
Terms of PaymentL/C, T/T
Update TimeOct 12,2024
Detail Information

KDH series high temperature is installedwith built-in after cooler and Independent fan, which allow maximum inlettemperaure up to 80 without affecting the dew point.

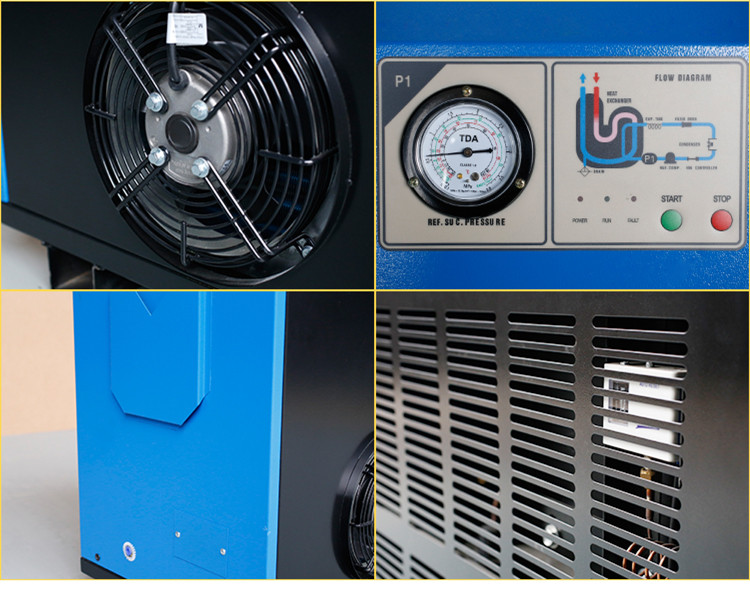

Eco-friendly refrigerant compressor

Each KDH  air dryer is equipped with R407C orR134a refrigerant compressor. Scroll compressor offering energy savings of 20-30% when compared with piston compressors. The ability to tolerate liquidreturns coupled with 50% less moving parts render them nearly indestructibleand highly reliable.

Hot-gas by-pass valve

Each model of KDL air dryer is installedwith hot-gas by-pass valve which prevents the freezing inside the evaporator atany load condition. The valve is set during final test and no furtheradjustments are necessary.

Electrical control panel

On/Off switch, Power On light,compressor runlight and Refrigerant Suction gauge are standard on all refrigerated air dryers.

Analog gauges can be added in anycombination to monitor inlet and outlet pressure and inlet and outlet air temperature.

Digital dew point controller is optional for150F and above.

Operating condition

Nominal ambient temperature:

 35°C

Max inlet air temperature

 80°C

Normal inlet air pressure

 7 barg

Pressure dew point:

 2-10°C

Maximum ambient temperature:

 42°C

Max working pressure

14barg



Comprehensive presentation

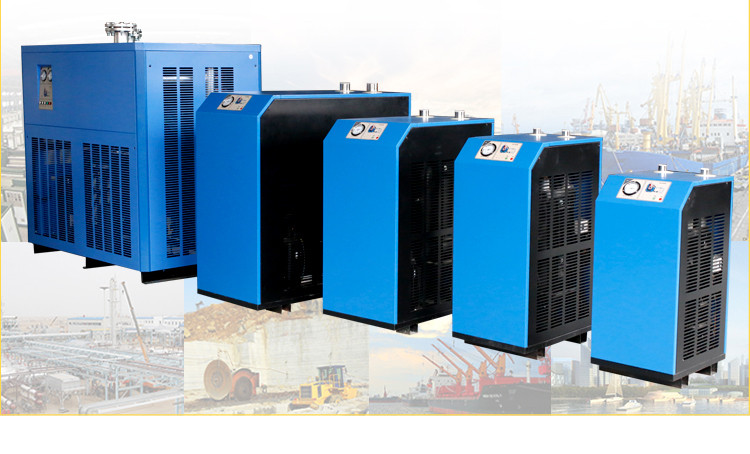

Specifications


  Model        Flow  Capacity  Power Cons.(kw)Conn.       DimensionsWeight
m3/minm3/hCFM(BSP)L (mm)W(mm)H (mm)(kg)
KDH-10F1.696560.531"50041588050
KDH-20F2.6156920.951"630450101055
KDH-30F3.82281341.161"630450101060
KDH-50F63602121.651 1/2"770530107070
KDH-60F74202471.651 1/2"820530107085
KDH-75F8.55103001.81 1/2"8705801180110
KDH-100F11.56904062.32"11805801190150
KDH-120F13.58104762.522"12507301230190
