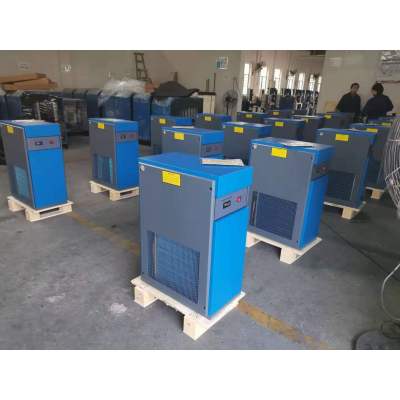

Stainless Steel Plate Heat Exchanger Air Dryer (1.6m3/min)

Stainless Steel Plate Heat Exchanger Air Dryer (1.6m3/min)

Stainless Steel Plate Heat Exchanger Air Dryer (1.6m3/min)
Stainless Steel Plate Heat Exchanger Air Dryer (1.6m3/min)Stainless Steel Plate Heat Exchanger Air Dryer (1.6m3/min)
CategoriesBDL series
BrandKL
ModelKDL-10F
Cooling typeAir cooled
RefrigerantR134a,R407c,
EvaproatorStainless Steel Plate heat exchanger
Max inlet temperature55°C
Ambient temperature40°C
Dew point2-5°C
Working pressure7-16Bar
Voltage220V/50Hz
L*W*H(mm)450*210*605
Weight45kg
FOB portShanghai 、Ningbo
Terms of PaymentL/C, T/T
Update TimeOct 12,2024
Detail Information

BDL small refrigerated compressed air dryer  ---( Capacity 0.7~6m3/min)

1. Use stainless steel heat exchanger , high heat exchange efficient and energy-saving ;

2. Refrigerated compressor use HITACHI brand , R134a/R407c /R410 friendly-environment gas;

3. All dryer with hot gas by-pass valve;

4. Condenser with blue hydrophilic film, it good for rust-poof;

5. Delix or Schneider electrical components make sure the power supply;

6. Standard voltage is 220V 50HZ, 110V 60HZ dryer we can make also;

7. Every KL dryer with 24hours quality testing before shipmnet, 13months warranty time guarantee.


                     Max inlet temperature:60oC

                     ambient temperature≤40oC

                     working pressure:7-10Bar

                     DEE-POINT TEM:2-5oC

Comprehensive presentation

BDLthreecolour


BDL


Specifications



   Model         Flow  Capacity  Power Cons.(kw)Conn.        DimensionsWeight
m3/minm3/hCFM(BSP)L (mm)W(mm)H (mm)(kg)
BDL-10F1.696560.471"50041568045
BDL-20F2.6156920.851"63045079050
BDL-30F3.82281341.041"63045079055
BDL-50F63602121.651 1/2"77053089070
BDL-60F74202471.651 1/2"82053089080
BDL-75F8.55103001.671 1/2"87058089090
BDL-100F11.56904062.052"1180580870120
BDL-120F13.58104762.32"9507301130



140
