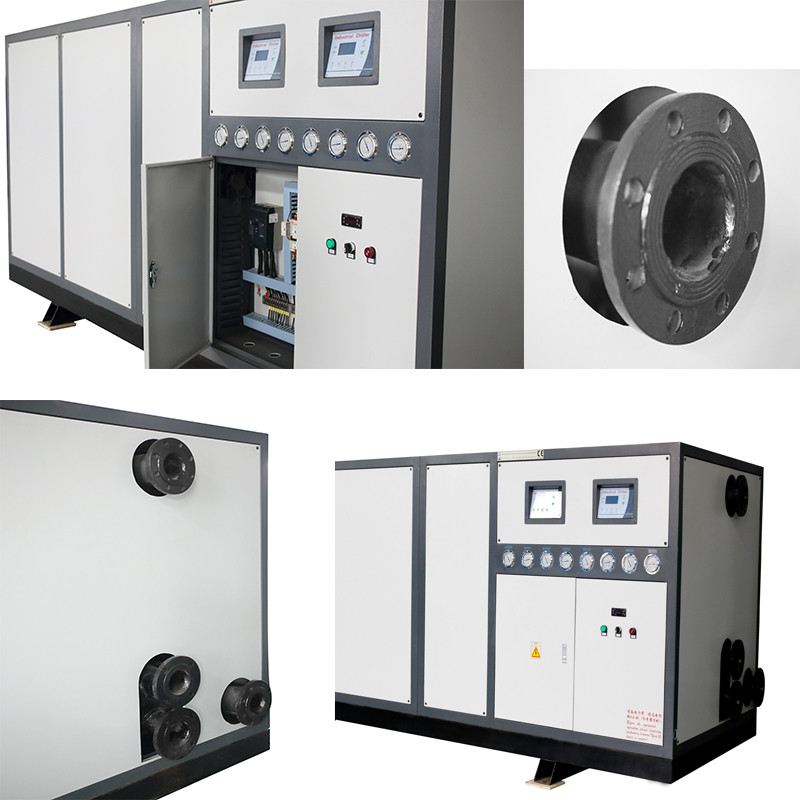

Water cooled Screw Water Chiller (174- 2600kw)

Features:
1.Imported semi-hermetic double screw compressors,compared to traditional reciprocating compressor,it has advantages of high efficiency,no noise,easy operation and long life.
2. World famous brand refrigerating fittings to ensure high quality and reliable running.
3. Highly efficient grooved copper tube as heat exchanger for evaporator and condenser,high coefficient of heat transfer,high heat transfer efficiency evaporating in the tube and condensing out of tube
4. Independent refrigerating cycle which can be maintained and repaired without
5. Adopted SIEMEN microcomputer programmable controller,coordinating with compressor’s staged energy adjusting system, can timely and exactly adjust the refrigerating output with refrigeration duty.

Type                  LSW-
50SL
60SL
80SL
100 SL
130 SL
150 SL
200SLD
250SLD
refrigerating output
KW
165
185
281
352
468
574
704
936
Kcal/h
142000
159000
241660
302720
402480
493640
605440
804960
refrigerant
R22/R407C/R134a
refrigerant weight
kg
30
38
56
70
90
120
140
180
Voltages
380V/3PH/ 50Hz
controlling method
microcomputer programmable controller
safe protection
Refrigerating high and low pressure protectionwater system fault protection, antifreeze protection, overheating and overloading protection etc.
staged energy control
%
0/50/70/100
0/25/50/100
quantity of compressor
Set
1
2
Power of compressor
KW
35.1
37.0
60.0
72.0
94.0
116.0
145.0
189.0
cooling water
temperature
30(inlet)/ 35 (outlet)
flow
T/h
34.5
37.0
60.0
75.0
98.0
120.0
150.0
195.0
resistance of water path
MPa
≤ 0.07
connection
flange
DN80
DN100
DN125
DN150
chilled water
temperature
30(inlet)/35(outlet)
flow
T/h
27.6
33.0
49.0
60.0
78.0
96.0
120.0
156.0
resistance of water path
MPa
≤ 0.07
connection
flange
DN80
DN100
DN125
DN150
dimensions
L
mm
2300
2400
3000
3000
3600
4100
4200
4200
W
mm
900
900
950
950
1100
1200
1400
1500
H
mm
1200
1200
1200
1200
1600
1800
1800
1900
weight
Kg
1100
1200
1500
1600
2400
3500
3800
4200
