Working Principle of PSA Gas Nitrogen Generator for Chemical Engineering
Under a certain pressure, using the large difference of the diffusion rate between nitrogen and oxygen from the air
in the carbon molecular sieve, a large number of oxygen is adsorpted by carbon molecular sieve, while nitrogen is
collected in a short time, to achieve separation of oxygen and nitrogen.
The adsorption capacity of carbon molecular sieve is significantly different with different oxygen
pressures, reducing the pressure will release oxygen from carbon molecular sieve, this make carbon molecular
sieve regeneration, then can be used repeatedly.
Using two adsorption towers, one for adsorption and nitrogen generator, the other for desorption and recycling.
They switch with each other, thus continuous output of high-quality nitrogen.
Environment condition of equipment
1.installation place: ground grading, without foundation, but it is necessary to have a sewage discharge ditch.
2.Ambient temperature: ≤40°C.
3Relative humidity: ≤80%.
4.Power:440V/ 380V/220V,60/Hz/ 50Hz
N2 flow rate
| Standard state|
| non-oxygen content|
N2 outlet pressure
| Gage pressure, adjustable|
N2 outlet dew point
|≤ 45 °C|| Atmospheric dew point|

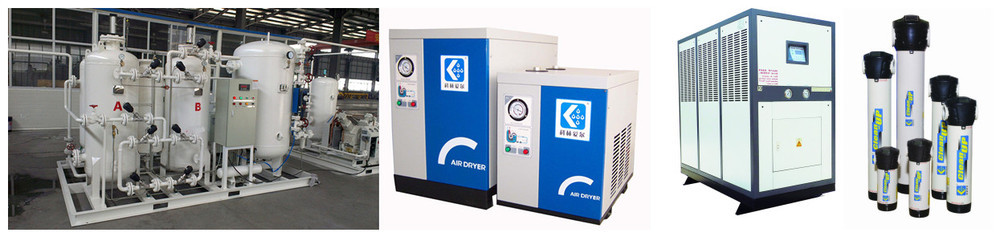

PSA Gas Nitrogen Generator for Chemical Engineering

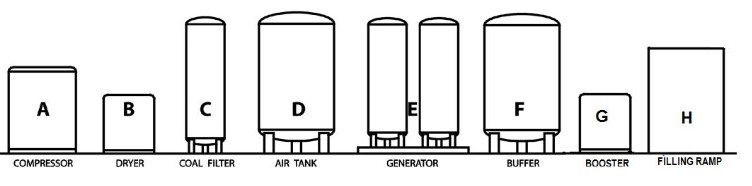

1 air compressor
2 Compressed air pretreatment system (dryer and multistage filters)
3 Air buffer tank
4 PSA nitrogen generator
5 Nitrogen gas buffer tank
6 Control system(including man-machine control interface)
7 Instrument and meter (installed in nitrogen generator)
Technical paramaters of PSA Gas Nitrogen Generator for Chemical Engineering :
Required air consumption
PSA Nitrogen Generator
Non-oxygen content in GB
Dew point of N2 outlet
Atmospheric dew point
KL nitrogen generator, with high quality and service.so many type for your choose:99% , 99.5% , 99.9%, 99.99%.
We will test the whole equipment with compresser ,air dryer ,filter and generator in our plant,and adjust all the valve for you,when you get it,easy for your installation.
