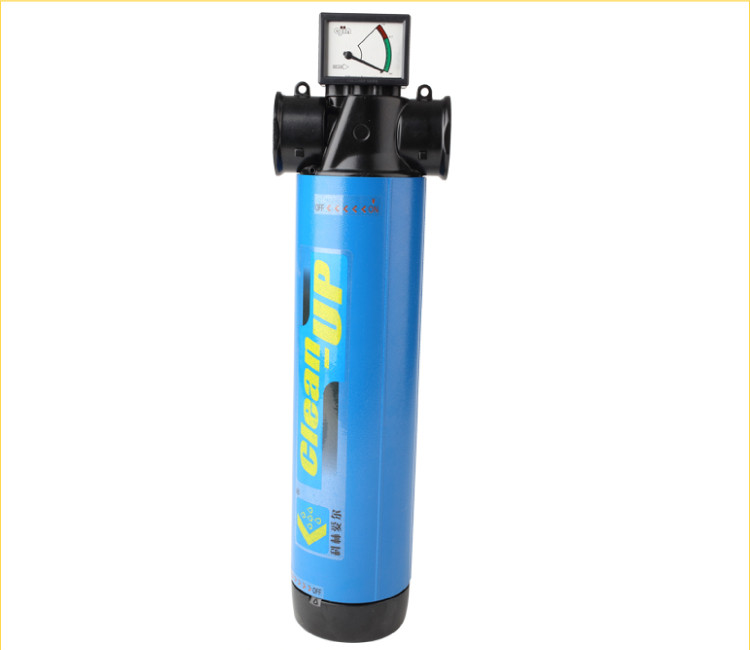

pre-filter with 1" for 20hp compresor line

pre-filter with 1" for 20hp compresor line

pre-filter with 1" for 20hp compresor line
pre-filter with 1" for 20hp compresor linepre-filter with 1" for 20hp compresor line
CategoriesSmall capacity air filter
BrandKL
Model70-D-G
Filter house materialaluminum alloy
Capacity2.6m3/min
Working pressure2-16bar
Accessoriesauto-drainer
L*W(mm)305*107
Weight3.1kg
FOB portShanghai 、Ningbo
Terms of PaymentL/C, T/T, Western Union
Update TimeMar 29,2024
Detail Information

KL Compressed Air Filter Removing compressed air contaminant efficiently

KL filter provides high quality compressed air for users, filter is sold in more than 20 countries and districts.

Installing KL compressed air filter can ultimately remove compressed air pollutants. (such as oil, water and dust etc.) Ensuring user’s maximum clean compressed air.

KL company have 5 kinds of compressed air filter for your choose:

CLASS  C   Main pipe dust filter ----3micron3ppm

CLASS  T  Main pipe oil/water filter ----1micron1ppm

CLASS  A  High efficient oil filter ----0.01micron0.01ppm

CLASS  F  Supper high efficient oil filter----0.01micron0.001ppm

CLASS  H  Activated carbon micro oil moisture filter----0.01micron0.003ppm


Comprehensive presentation






Specifications


ModelFlow(m3/min)Pipe Connector CaliberLength*WildthFilter ElementWeight(kg)
ModelNumber
(Class)-351.6ZG1260*107(Class)-35E12.8
(Class)-702.6ZG1305*107(Class)-70E13.1
(Class)-1003.8ZG1365*107(Class)-100E14.2
(Class)-1505ZG1-1/2420*130(Class)-150E15
(Class)-2007ZG1-1/2550*135(Class)-200E16.8
(Class)-3008.5ZG1-1/2635*135(Class)-300E17.3
(Class)-40013.5ZG2760*170(Class)-400E119.2
(Class)-60017ZG2820*170(Class)-600E123
(Class)-80023ZG21060*170(Class)-800E128
